Dev Boards

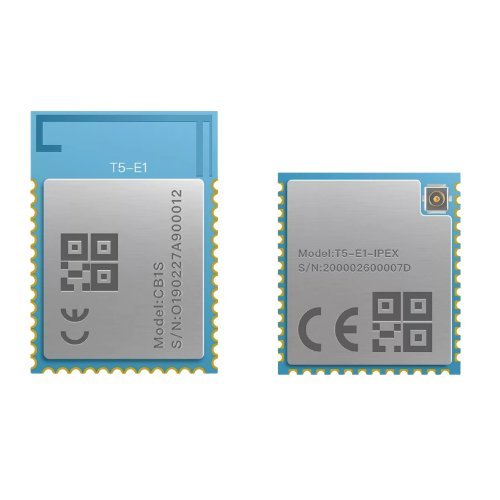

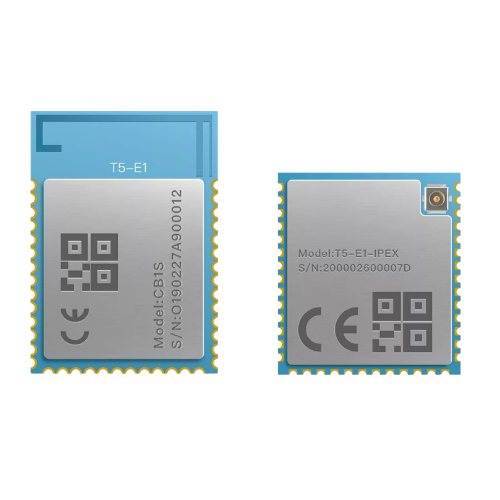

T5-E1 Wi-Fi & Bluetooth chip module. Two packages: T5-E1 (onboard antenna) and T5-E1-IPEX (IPEX connector). Start from scratch with default platform overlay.

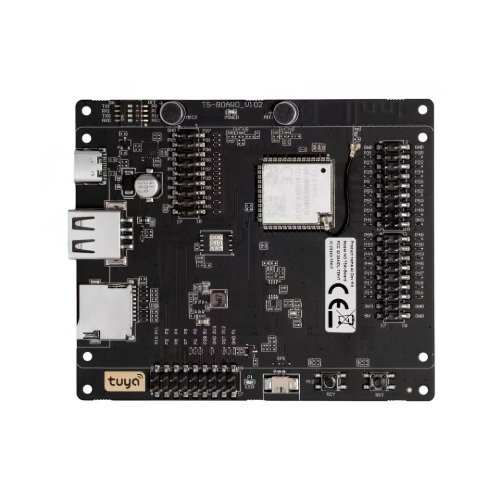

Tuya T5AI-Board is a voice and screen multi-interaction development board based on the T5-E1-IPEX module, which is an embedded Wi-Fi and Bluetooth combo module developed by Tuya. The board is equipped with 2 microphones and 1 speaker, supporting voice recognition and playback to enable voice interaction functionality. Through the I/O connectors on the board, you can use an LCD display stack module to implement touchscreen and camera capture capabilities. You can also design your own LCD screen, supporting multiple interfaces including I2C, SPI, 8080, and RGB.

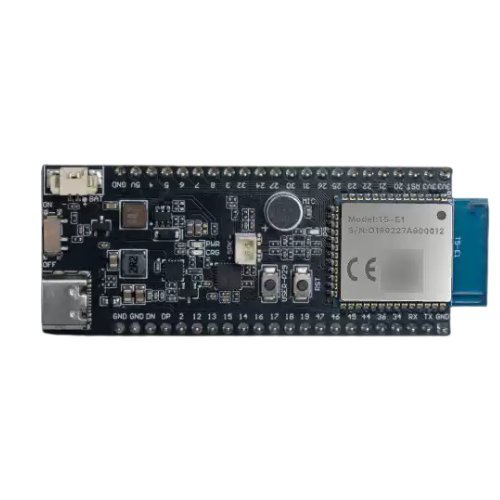

Tuya T5AI-Core Development Kit is a highly integrated voice core development board based on the T5-E1 module. The T5-E1 module, independently developed by Tuya Smart, incorporates embedded Wi-Fi and Bluetooth capabilities, making it suitable for a variety of smart hardware scenarios. This board features an onboard microphone and speaker, supporting local voice recognition and audio playback to meet the requirements of voice interaction applications. The board is equipped with a 44-pin header, making it easy for you to quickly develop and prototype AIoT projects. An onboard lithium battery power management circuit supports low-power design, suitable for developing mobile and portable smart devices. This board provides extensive hardware interfaces and comprehensive voice functionality, so it stands out as an ideal choice for you to develop AIoT voice interaction applications.

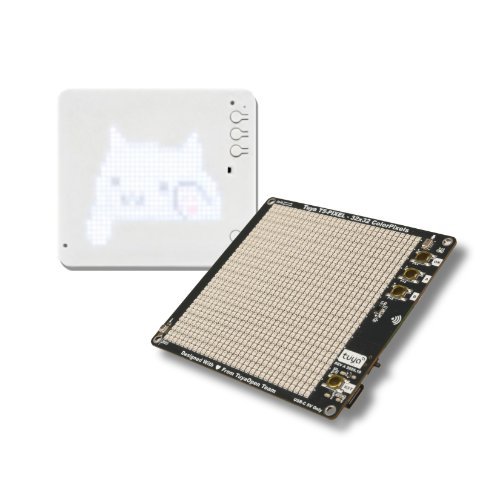

Pixel Art with 32x32 high pixel density LED panel. WIFI/BTE connected with Tuya T5-E1 chipset. On board with WS2812B pixel LEDs, BMI270 6-axis IMU, buzzer, and multi-button layout. Audio, mic and speakers. Make suited for AI + Pixel applications.

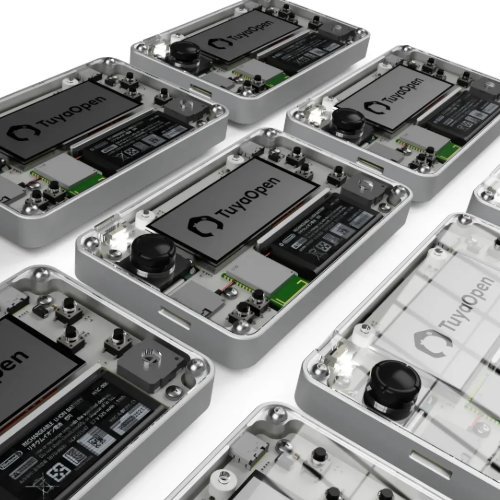

Tuya-T5-Pocket is a portable handheld device built on the open-source TuyaOpen framework. It supports deep integration with multimodal AI Agent and large language models, as well as audio-video multimodal large models. Powered by Tuya T5 Wi-Fi & Bluetooth chip module, the project features fully open-source hardware design and software code. It comes with abundant onboard sensors and powerful external expansion compatibility. This compact T5 AI board integrates mono display screen, camera, AXP2101 power management unit, BMI270 IMU, joystick and cellular module.

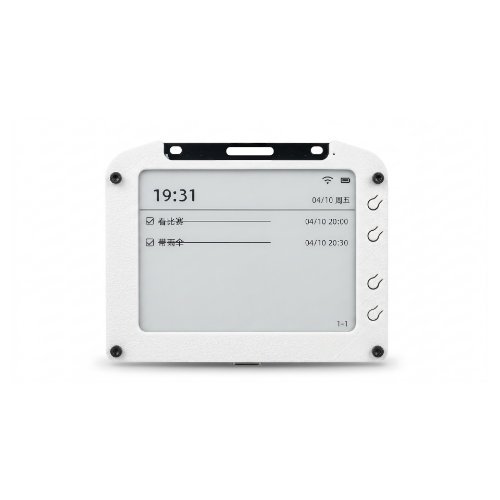

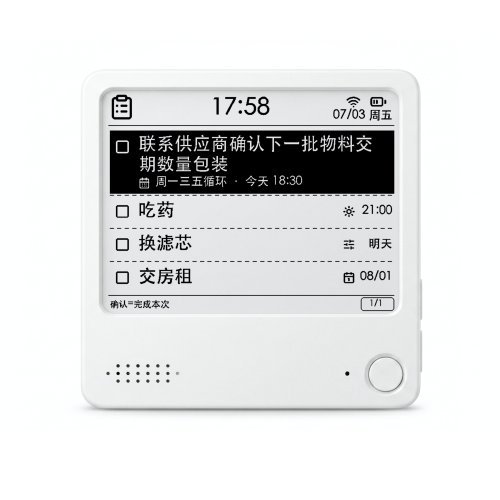

T5AI board with UC8276 E-Ink display, NFC, touch panel, 6-button layout, battery management, and SD card.

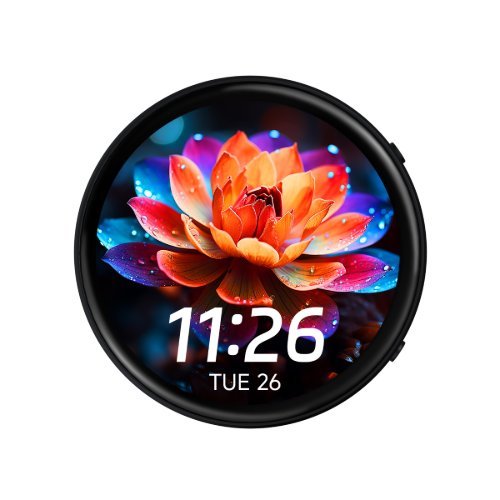

Waveshare 1.75" 466×466 AMOLED board with T5-E1 module, capacitive touch, QMI8658 IMU, RTC, audio AEC, battery management, and SD card.

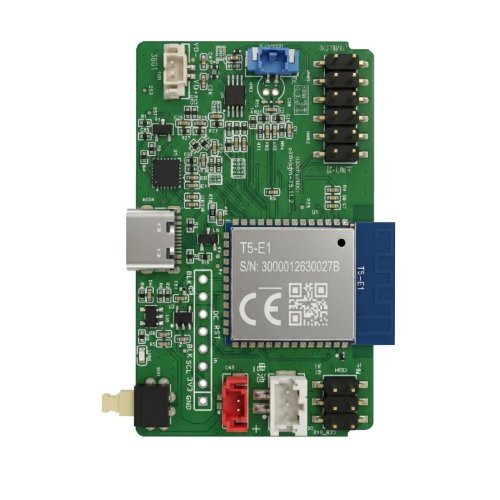

T5AI Otto robot board based on the Tuya T5 (T5AI). Onboard audio codec with AEC plus an optional SPI LCD expansion module (ST7789 / ST7735S / GC9D01) for the Otto robot reference design.

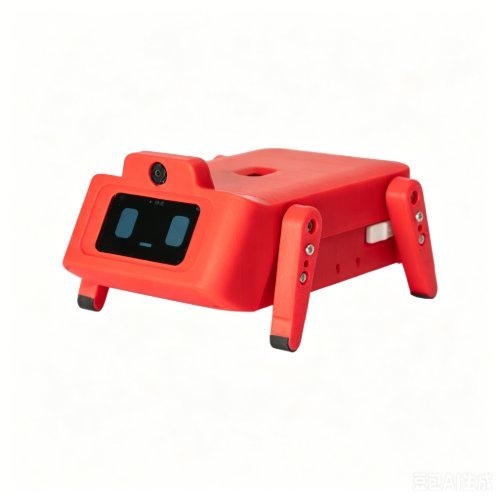

Tuya T5AI robot dog board based on the Tuya T5 (T5AI). Onboard audio codec, user button, indicator LED and a built-in 172x320 SPI LCD for the robot dog reference design.

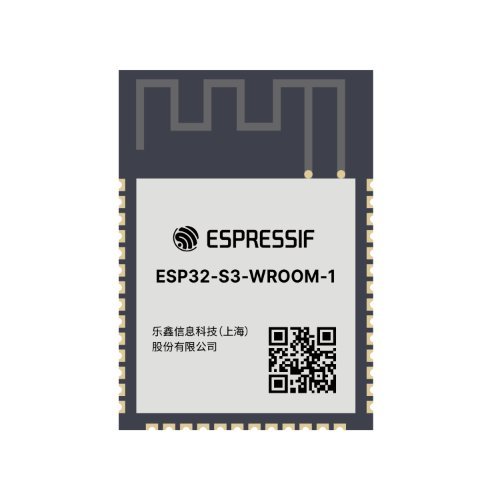

Generic ESP32-S3 development board target — dual-core Xtensa LX7 with Wi-Fi, BLE 5.0, USB-OTG, PSRAM, and AI vector instructions. For audio and display AIoT.

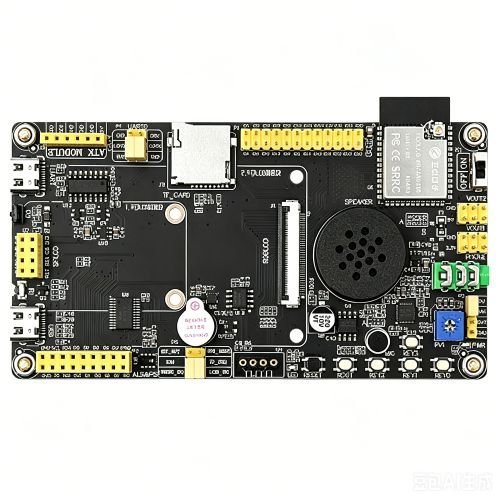

ALIENTEK DNESP32S3 development board based on ESP32-S3 — onboard ES8388 audio codec, ST7789 SPI LCD, and an XL9555 I/O expander, with 16MB flash and PSRAM.

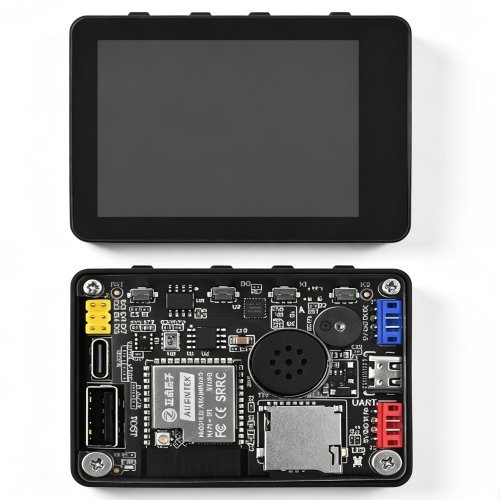

ALIENTEK DNESP32S3-BOX based on ESP32-S3 — boxed AI voice-interaction kit with ES8311 codec, ST7789 8080-interface LCD, and XL9555 I/O expander.

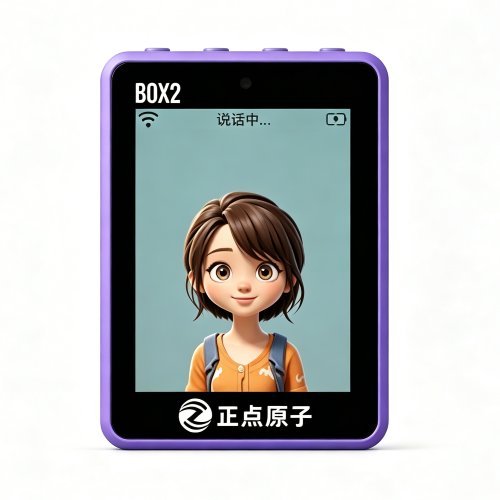

ALIENTEK DNESP32S3-BOX2 (Wi-Fi) based on ESP32-S3 — ES8389 audio codec, ST7789 8080-interface LCD with backlight, and a multi-function XL9555 I/O expander.

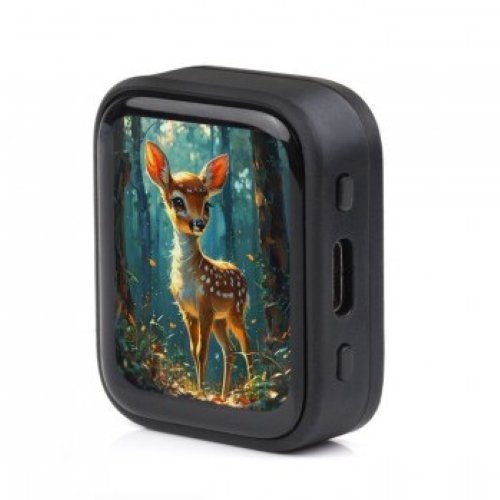

Waveshare ESP32-S3 Touch AMOLED 1.8" board — 368x448 SH8601 QSPI AMOLED with FT5x06 capacitive touch, ES8311 audio codec, AXP2101 PMIC, and a TCA9554 I/O expander.

Xingzhi ESP32-S3 Cube with a 0.96" SSD1306 OLED (128x64, I2C) and codec-less I2S audio. A compact Wi-Fi AI voice-assistant reference.

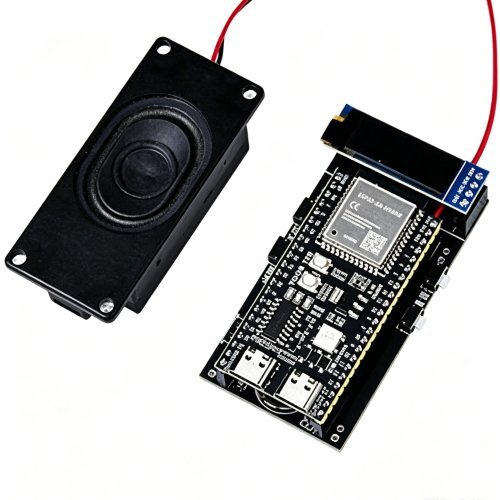

Compact breadboard ESP32-S3 reference with a 0.96" SSD1306 OLED (128x32, I2C) and codec-less I2S audio — a minimal DIY Wi-Fi build.

Generic ESP32-P4 development board target — high-performance dual-core RISC-V with MIPI-CSI/DSI and rich peripherals for HMI and edge-AI. Wi-Fi 6 / BLE via a companion ESP32-C6.

Waveshare ESP32-P4-C6 Touch LCD 4.3" board — 480x800 MIPI-DSI display with GT911 capacitive touch, ES8311 audio codec, and onboard ESP32-C6 for Wi-Fi 6 / BLE.

Waveshare ESP32-C6 Dev Kit (N16, 16MB flash) — minimal board with a user button and an addressable RGB LED. Wi-Fi 6, BLE 5.3, and 802.15.4.

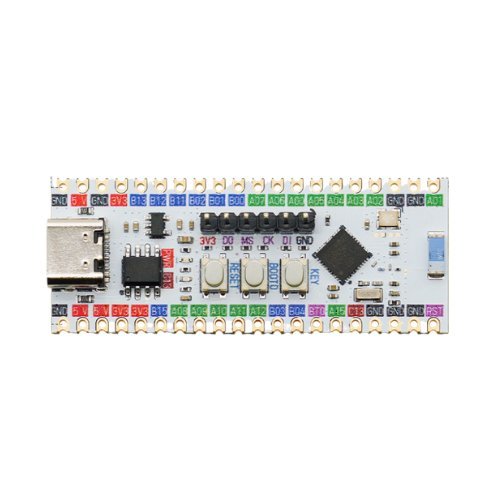

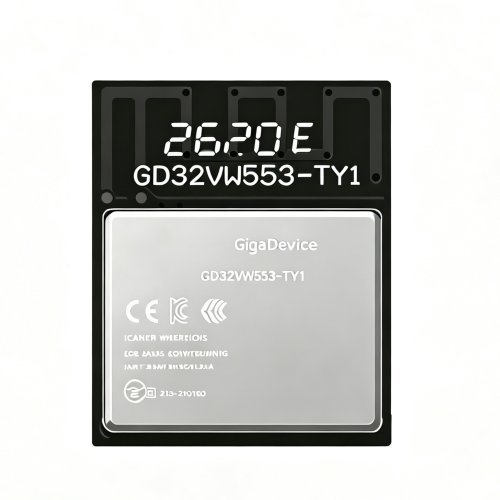

LCKFB GD32VW553 development board based on the GigaDevice GD32VW553 (RISC-V @160MHz with integrated Wi-Fi 6 and Bluetooth LE 5.2). Breaks out rich GPIO and peripheral interfaces (UART/I2C/SPI/QSPI/ADC/PWM) for wireless IoT development.
