Create platform

Overview

Use the command tos.py new platform to create a new hardware platform porting template.

This command is intended for developers who want to port TuyaOS to a new hardware chip or development board that is not officially supported yet. It will automatically generate a complete directory structure and basic code files for adapting to the new hardware.

Summary: The new platform command greatly simplifies the workload of porting TuyaOS to new hardware. Developers do not need to manually create all the required files and directories. Just run this command and then focus on implementing the hardware-specific driver code in the generated template files (.c and .h).

Operation Principle

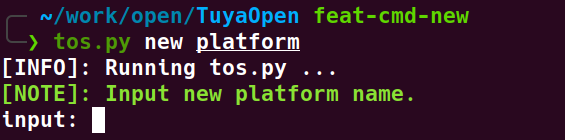

1. Enter the command tos.py new platform: You will be prompted to enter the name of the new platform (e.g., my_new_chip).



   input new platform

2. Generate Kconfig configuration:

   • Create a top-level Kconfig file to integrate the new platform into the project's configuration system.

   • A menuconfig interactive interface will pop up, allowing you to select which basic features (such as WIFI, BLE, GPIO, I2C, etc.) this new platform needs to support. Your selections will be saved in a default.config file.



   menuconfig

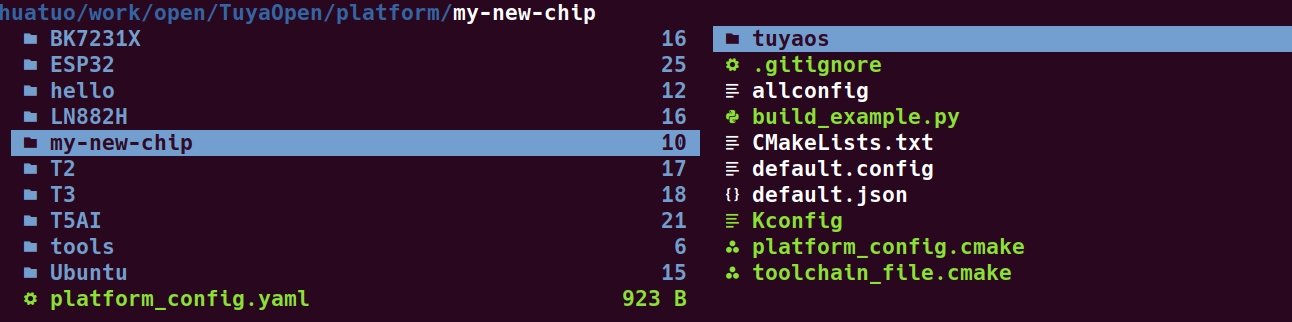

3. Create the platform directory: A folder named after your input (e.g., platform/my_new_chip) will be created under the platform/ directory.



   new platform folder

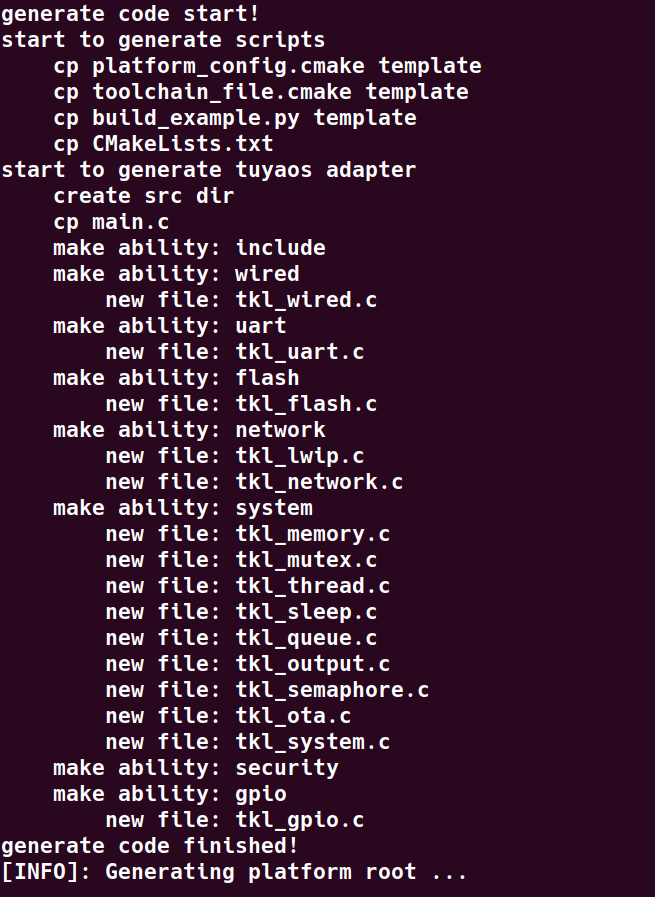

4. Copy adapter layer templates: According to your previous selections, the corresponding hardware abstraction layer (TKL - Tuya Kernel Layer) interface templates will be copied from the tools/porting/adapter directory to platform/my_new_chip/tuyaos/.

   • For example, if you checked the WIFI feature, the WIFI-related template files such as tkl_init_wifi.c and tkl_init_wifi.h will be copied over.



   new tuyaos

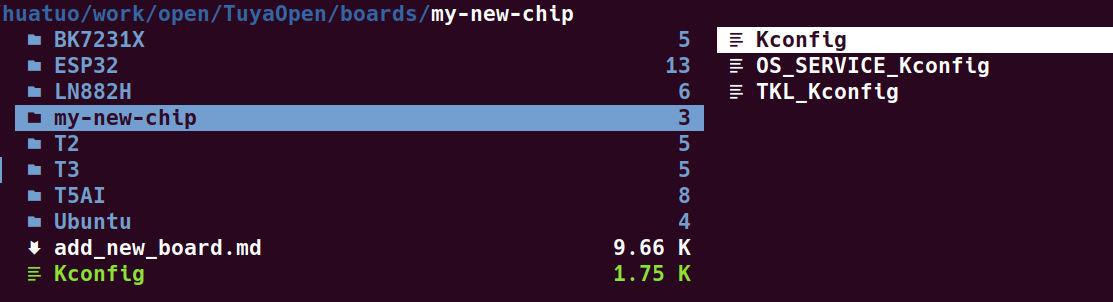

5. Create board-level configuration: A folder with the same name (e.g., boards/my_new_chip) will also be created under the boards/ directory, and a corresponding Kconfig file will be generated to add this new platform as an option in the build system.



   new board folder

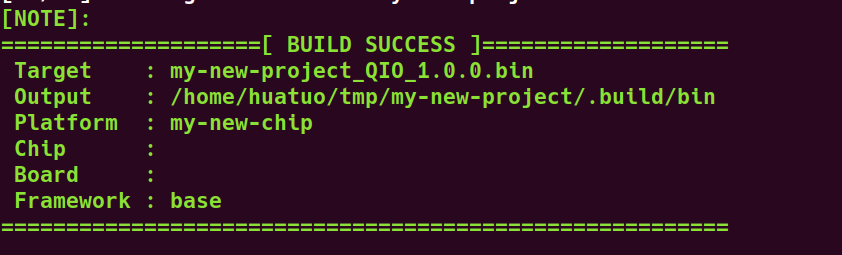

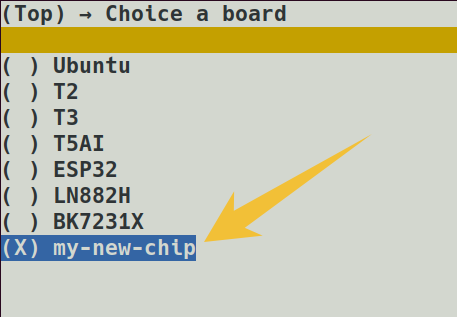

6. Build verification: Use the command tos.py new project to create a new project, select the my_new_chip platform, and use the command tos.py build to build and verify.



   new project



   build project

Next Steps

Overview:

1. Modify the platform/my_new_chip/platform_prepare.py file to complete platform initialization, such as toolchain download operations

2. Modify the platform/my_new_chip/toolchain_file.cmake file to configure the actual path of the build tools and build options

3. Modify the platform/my_new_chip/platform_config.cmake file to configure header file paths used by the application layer (optional)

4. In the platform/my_new_chip/tuyaos/tuyaos_adapter/src directory, fill in the actual hardware driver code as prompted

5. Modify the platform/my_new_chip/build_example.py file to complete the build and link steps

6. Modify the platform/platform_config.yaml file to configure repository git information (optional)

Platform Initialization

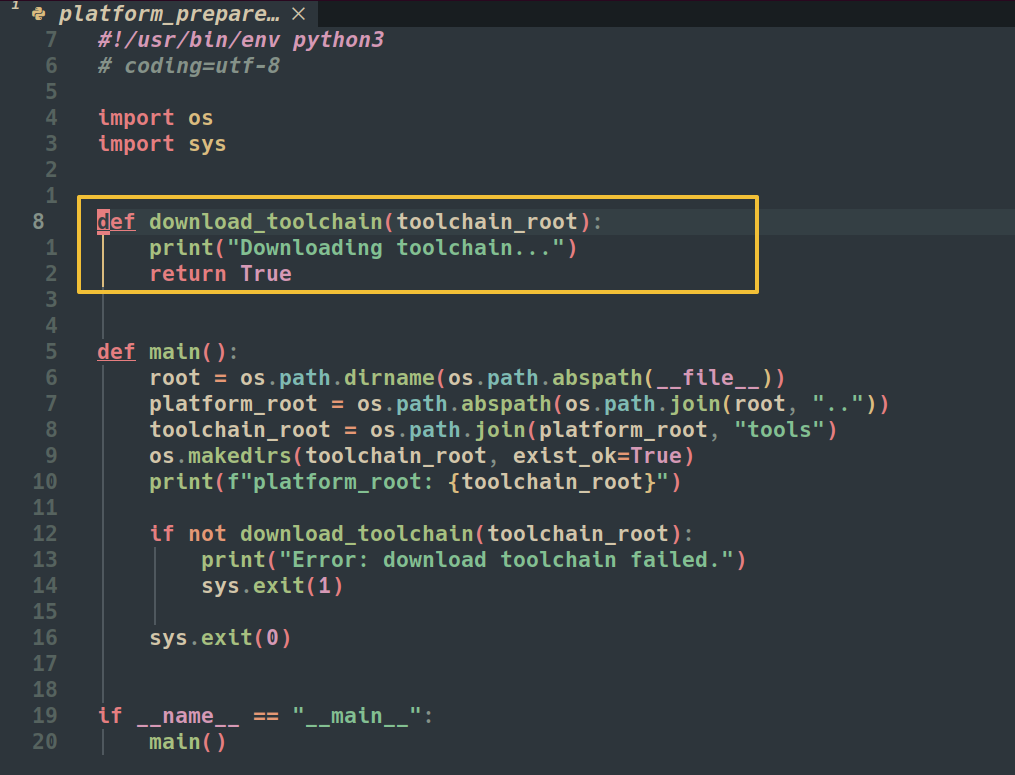

Modify the platform/my_new_chip/platform_prepare.py file to complete platform initialization, such as toolchain download operations.

This script will be executed first during the build process.

Please complete the required build tool downloads in this script. It is recommended to download the toolchain to the platform/tools directory.

The download logic can be developed independently or refer to the implementation of other official platforms (T5AI, ESP32).

If there are other operations that need to be completed before compilation, they can also be implemented in this script.

platform prepare

Configure Build Tools

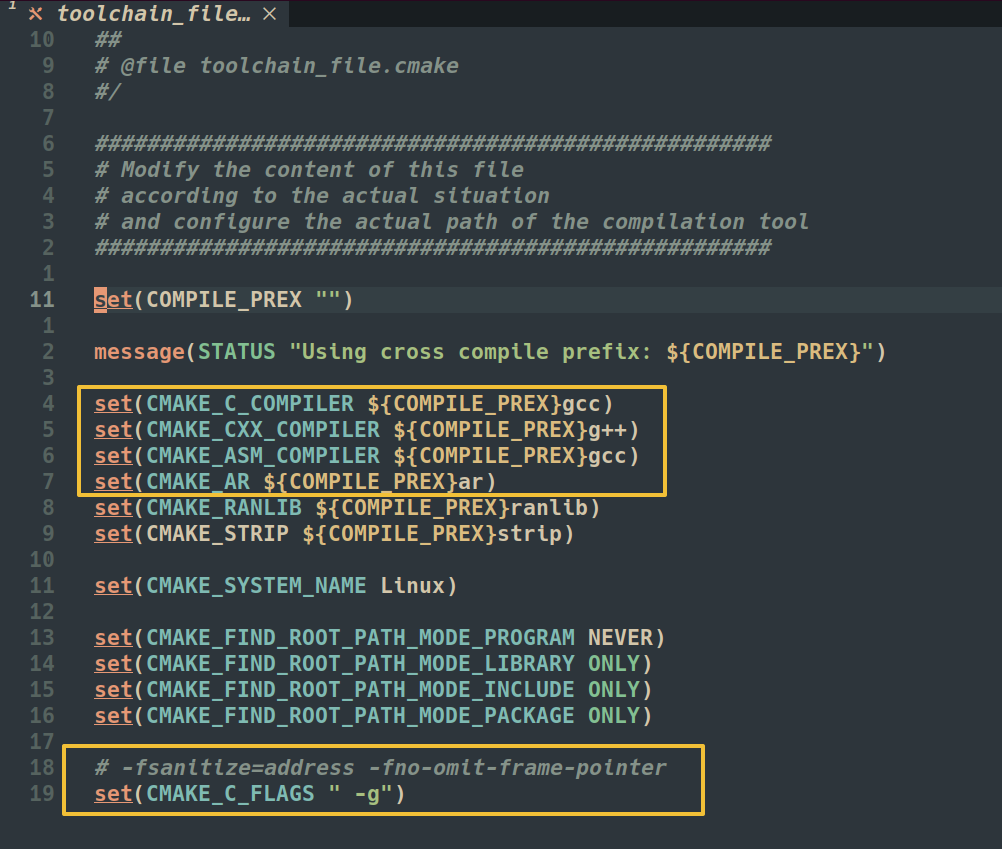

Modify the platform/my_new_chip/toolchain_file.cmake file to configure the actual path of the build tools and build options.

This file needs to specify the actual paths of build tools such as gcc, g++, ar, etc., as well as build options.

toolchain_file

Configure Special Header File Paths (Optional)

Modify the platform/my_new_chip/platform_config.cmake file to configure header file paths used by the application layer.

According to the cross-platform design of TuyaOpen, it should only include header file paths related to tuyaos_adapter, which have already been generated in the template.

However, if your platform needs to expose other header files to the application layer, you can add them in this file.

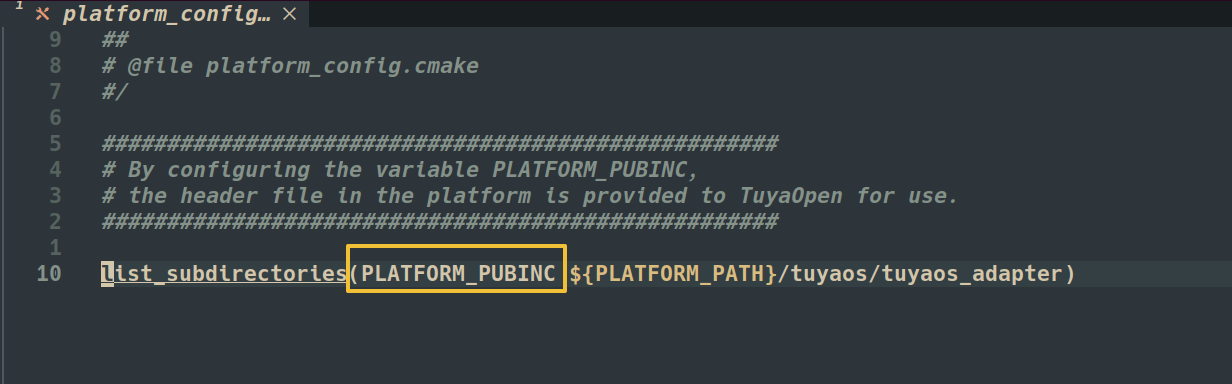

The variable PLATFORM_PUBINC is used to specify the header file paths used by the application layer. You can modify this variable to add header file paths.

platform config

Fill in the Code

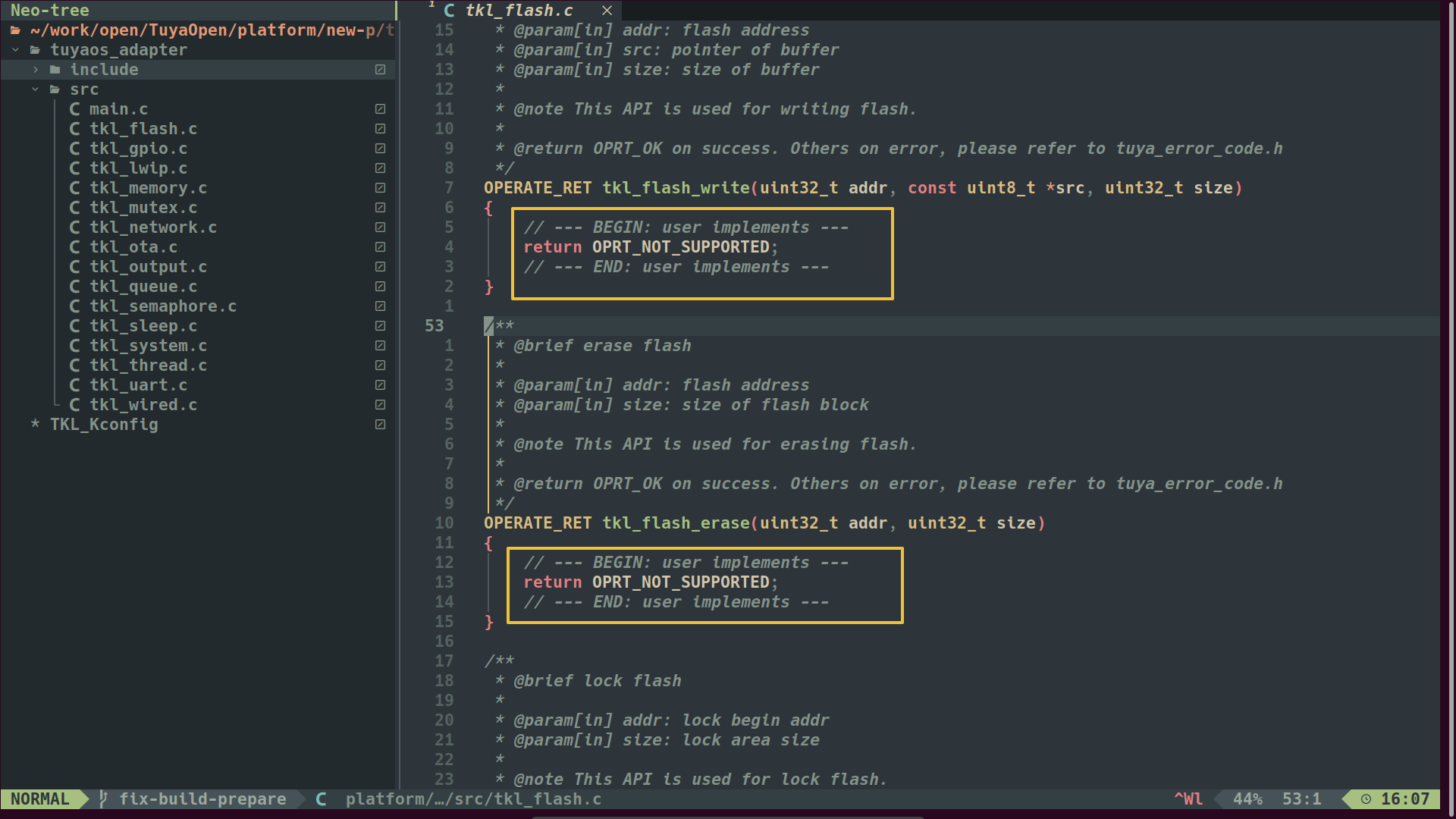

In the platform/my_new_chip/tuyaos/tuyaos_adapter/src directory, fill in the actual hardware driver code as prompted.

This process is the most important part, requiring the writing of corresponding driver code according to the specific hardware platform characteristics.

During the template creation process, some necessary interface function templates have been generated. Implement the specific logic of these functions in the corresponding .c files.

Since TuyaOpen uses exactly the same underlying interface as TuyaOS, you can follow the TuyaOS Porting Guide and RTOS Porting Guide for adaptation.

tuyaos adapter src

Build and Link

Modify the platform/my_new_chip/build_example.py file to complete the build and link steps.

This script can be modified according to the build method of the new platform. This script needs to complete three steps:

1. Compile the source code files in the tuyaos_adapter directory

2. Compile other source code files needed internally by the platform

3. Link the build products with the TuyaOpen upper-layer products libtuyaapp.a libtuyaos.a into an executable file

It should be noted that this script accepts two parameters: params_path and user_cmd.

1. params_path is the path to the build parameter file, providing three formats: cmake/config/json, which can be accessed using ${BUILD_PARAM_PATH}/build_param.cmake.

   The parameter file will provide various parameters required for compilation, such as OPEN_ROOT/OPEN_HEADER_DIR/OPEN_LIBS_DIR/PLATFORM_NEED_LIBS, etc.

   In addition, the results of function configuration are also in this parameter file and can be used.

2. user_cmd is a user-defined command.

   Possible values include: build to compile platform code; clean to clean build products.

   You need to implement different logic in the script according to the different commands passed in.

About Firmware Flashing (Optional)

The newly adapted hardware platform may require specific firmware flashing methods, and the tyutool flashing tool used by TuyaOpen does not provide universal flashing scripts.

You can submit an issue in the tyutool repository to request official support.

Configure Repository Information (Optional)

Modify the platform/my_new_chip/platform_config.yaml file to configure repository git information.

This operation is for cases where you need to provide the newly created platform to other developers.

If you are using it locally, you can ignore this step.
